Ferris ISX 2200 28hp 61″ Cut

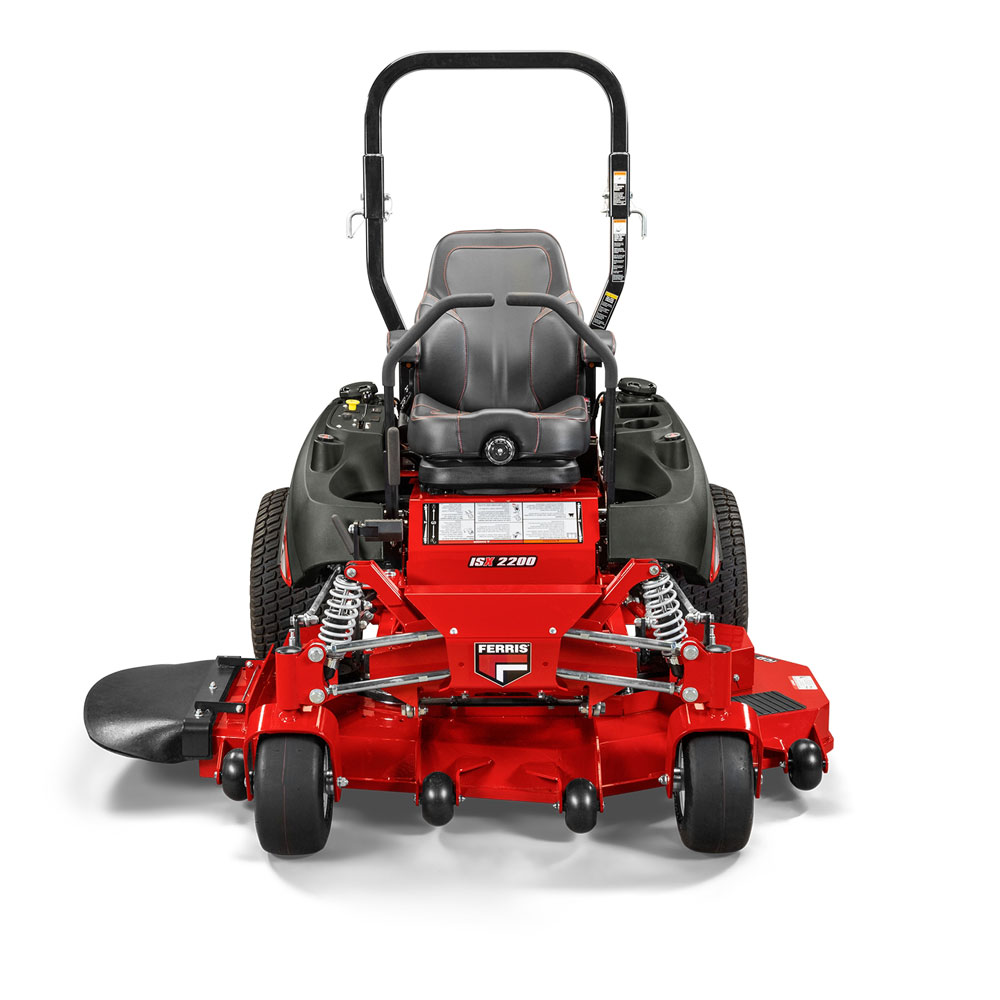

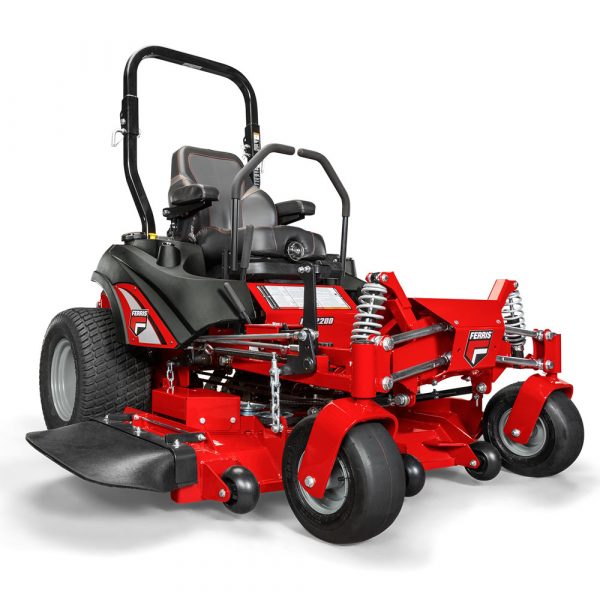

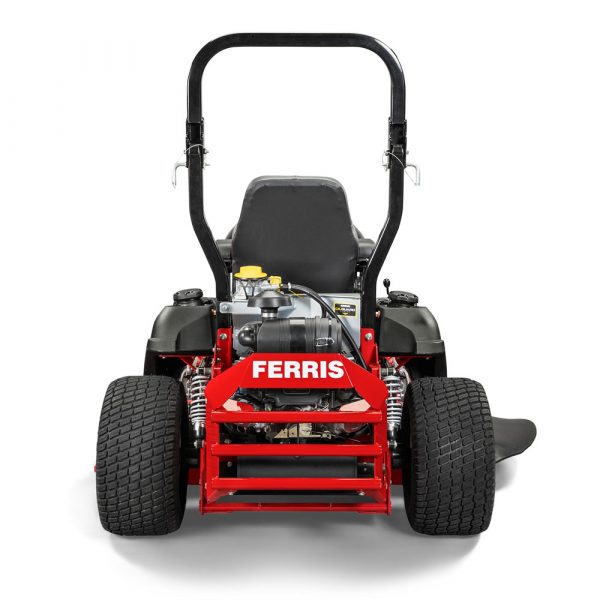

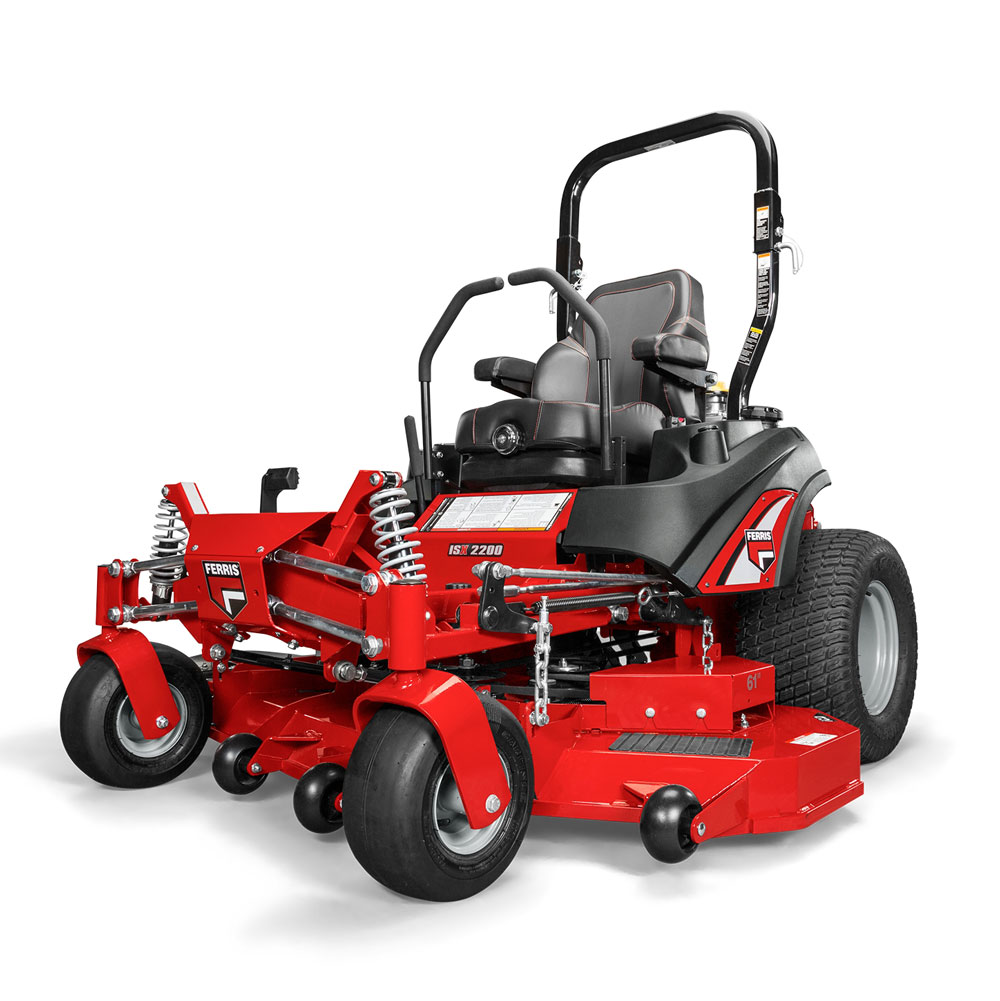

Ferris ISX™ 2200 mower

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 km/h, the ISX™ 2200 is engineered to increase efficiency and operator comfort.

SKU: 5901847 Categories: , Tag:

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Redesigned Rear Bumper

The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.

500 Hour Oil Change

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Drive System

Dual, commercial Hydro-Gear ZT-4400 transaxles deliver unmatched power and durability.

Adjustable Cut Height

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4″ increments from 1.5″- 5″ (38.1 mm – 127 mm).

HP (Gross)


Fuel Type




Engine Brand

Vanguard™ 810cc EFI with Oil Guard

Power Take Off (PTO)


Number of Cylinders


Fuel Capacity (L)




Cutting Width (cm)

155 (61)

Cutting Height (cm)

3.8 – 12.7 (1.5 – 5)

Deck Type

Side Discharge

Deck Construction

iCD™ Cutting System, 2-Belt

Deck Size



Cast Iron Greasable


ForeFront™ Suspension System – Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks


Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

Drive Axels (in)


Drive Tyres (in)

24 x 12" – 12"

Caster Tyres (in)

13 x 6.5" – 6"

Ground Speed - Fwd (km/h)

0 – 16.1

Ground Speed - Rev (km/h)

0 – 8.1

Overall Length (cm)


Dry Weight (kg)


Roll-over Protection System

180° foldable


Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit

Balance of Machine Warranty

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months).
