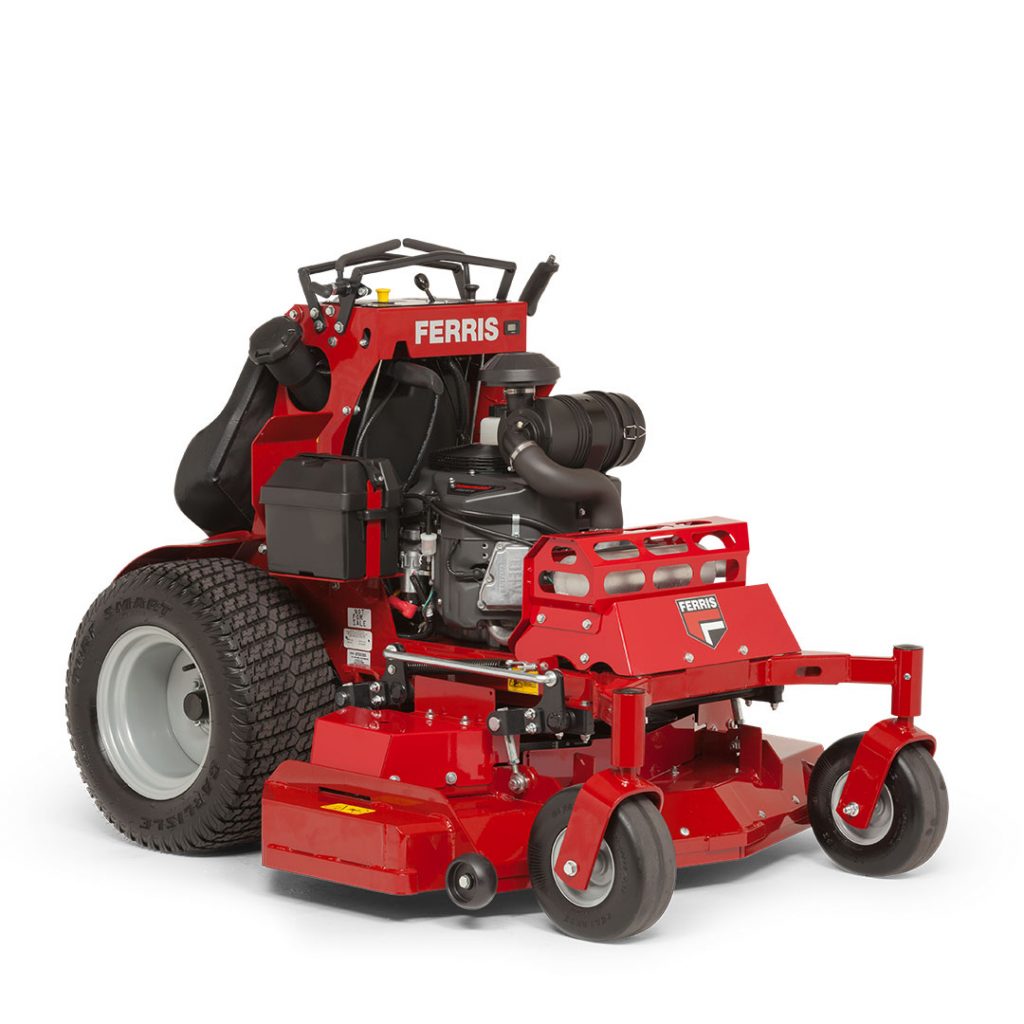

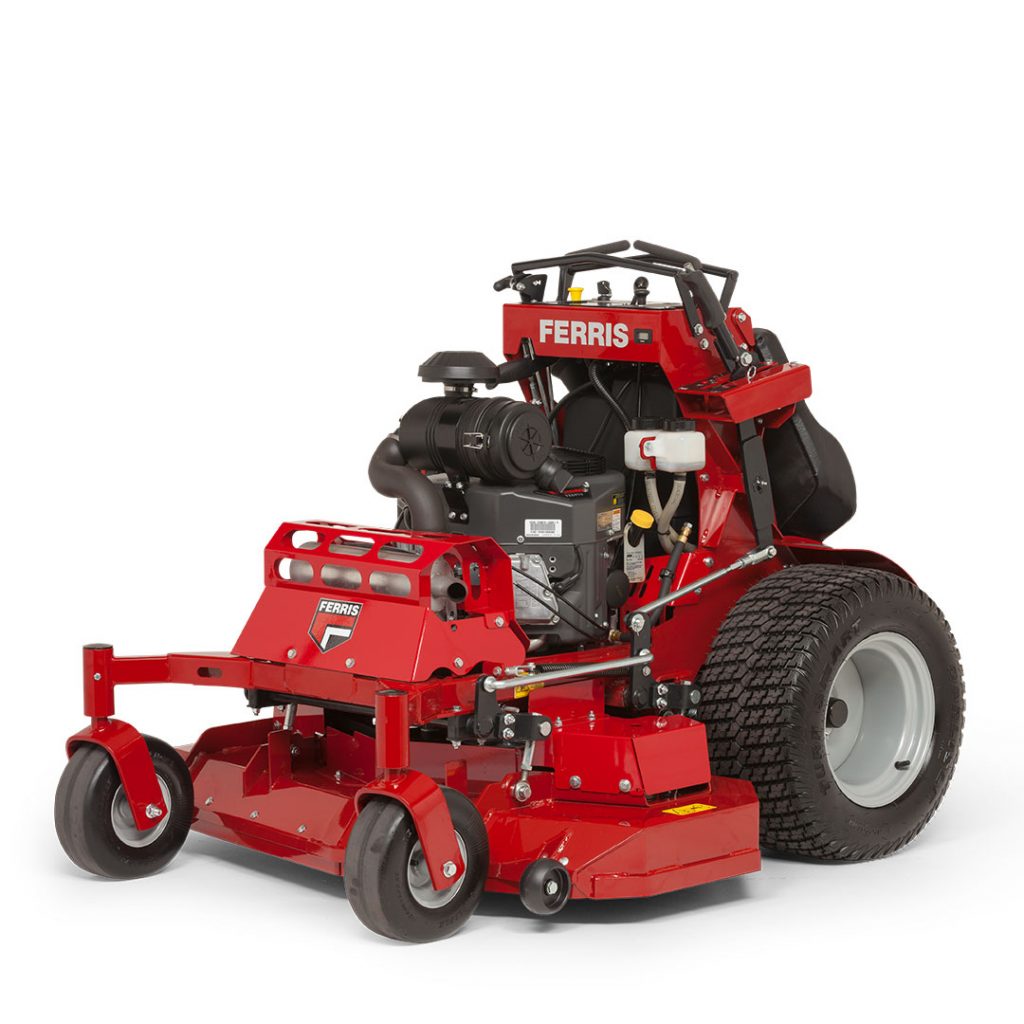

SRS™ Z1 Stand-On 19hp 36″Cut Mower


The Soft Ride Stand-on SRS™ Z1 is raising the bar with adjustable operator platform, featuring suspension technology, optimising operator comfort and increasing productivity!

The superior balance provides stability and manoeuvrability that exceeds expectations for traction and handling. The SRS™ Z1 is designed to allow for quick operator exit and re-entry. Need to walk away from the mower to move an obstacle or debris? The PTO will automatically disengage when the operator leaves the platform. Restarting the blades is just as easy. When the operator steps back onto the platform and reengages the PTO switch they can continue mowing.

SKU: 590676 Category: Tags: ,

Suspension Platform

The suspension platform system is adjustable for a large range of weights and operating conditions, optimising operator comfort and increasing productivity.

Hydro-Gear® ZT-3400®

Commercial Hydro-Gear® ZT-3400® Transaxles are designed for high performance and are fully serviceable.

Fuel Tank

Generous 23 litre fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Height of Cut

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading.

Speed Control Setting

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

Thigh Pad

Ergonomically designed thigh pad provides superior operator comfort, especially on uneven terrain.

HP (Gross)


Fuel Type




Engine Brand

Kawasaki® FX600 Series

Power Take Off (PTO)

Electric PTO clutch

Number of Cylinders

2 Cylinders V-Twin / 603 cc



Fuel Capacity (L)


Deck Type

Fabricated 10-gauge rear discharge steel deck

Cutting Width (cm)

91 cm / 36” Rear Discharge

Cutting Height (cm)

4,4 – 11,4 cm

Deck Construction

3,4 mm fabricated construction, double top deck, double reinforced side skirts, overlap welded corners

Deck Size



Cast aluminium 133 mm; 25,4 mm shaft


Adjustable suspension platform


Hydro-Gear® ZT-3400™ transaxles

Drive Axels (in)

28,6 mm Tapered with 4-bolt flange

Drive Tyres (in)

23 x 8.50 – 12 (4 ply)

Caster Tyres (in)

11 x 4.00 – 5 (4 ply) Flat free

Ground Speed - Fwd (km/h)

0 – 12.8 km/h

Ground Speed - Rev (km/h)

0 – 6.4 km/h

Overall Length (cm)


Dry Weight (kg)


Roll-over Protection System



Hour meter, fuel level gauge


Integrated forward & reverse control levers with stability bar, Automatic PTO Restart

Parking Break / Safety Circuit

Internal transaxle brake / Operator presence in platform, Parking brake safety circuit for starting engine

Balance of Machine Warranty

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months).
