Ferris ISX 800 27hp 52″ Cut

$20,999.00

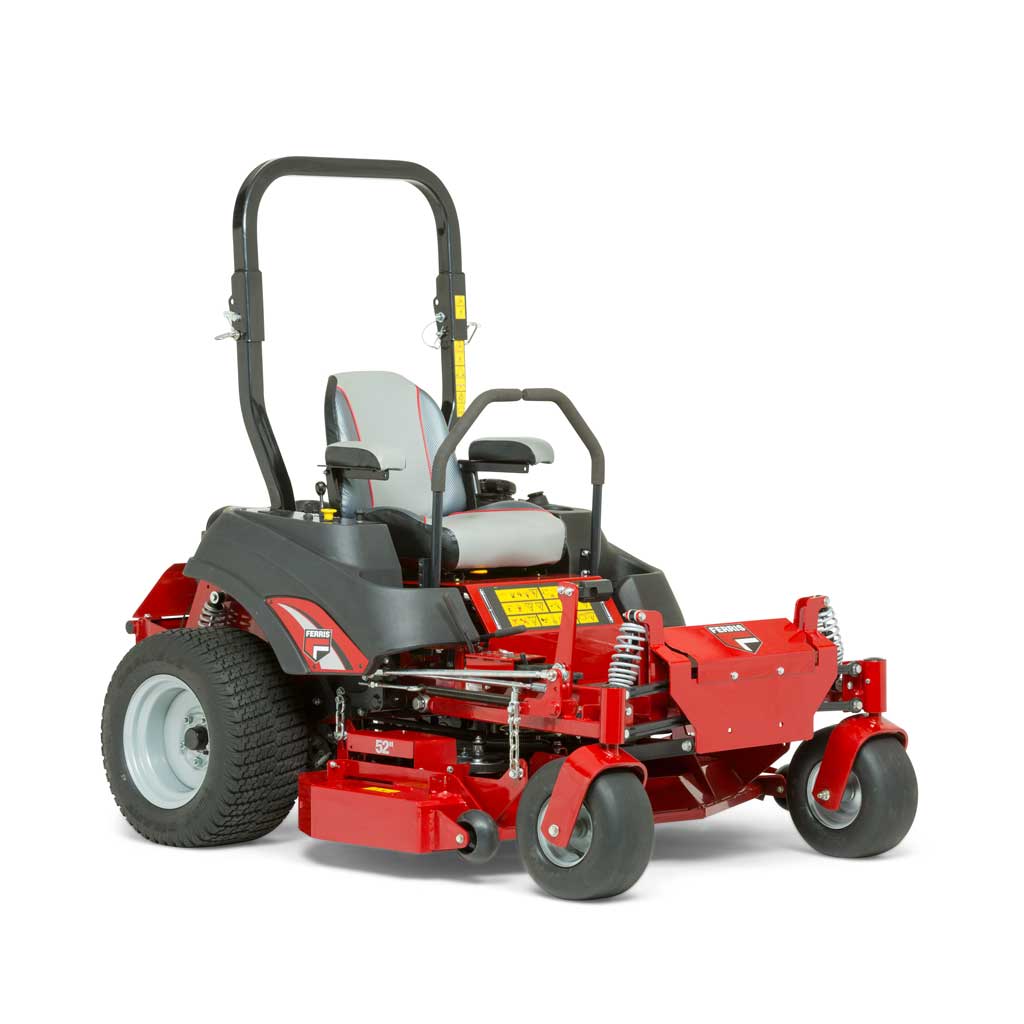

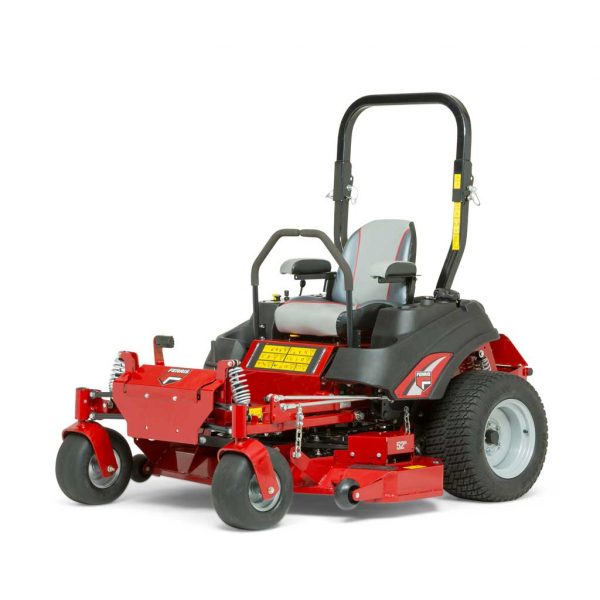

Ferris ISX 800 mower

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.

SKU: 5901933 Categories: , Tag:
Compare

ForeFront™ Suspension System

The system utilises four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Acres per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Kilometres per Hour

Up to 16.1 km/h ground speed, reverse 8.1 km/h.

HP (Gross)

27

Fuel Type

Petrol

Condition

New

Engine Brand

Briggs & Stratton Commercial Series™

Power Take Off (PTO)

Electric

Number of Cylinders

V-Twin

Fuel Capacity (L)

20.8

Starting

Electric

Cutting Width (cm)

132 (52)

Cutting Height (cm)

3.8 – 11.4 (1.5 – 4.5)

Deck Type

Side Discharge

Deck Construction

Fabricated, 10-gauge, double top deck, double reinforced side skirts, overlap welded corners

Deck Size

52

Spindles

Cast-Aluminium Greasable

Suspension

Active Performance Suspension

Drive Axels (in)

2.9 (1.125) Tapered

Drive Tyres (in)

22 x 11" – 10"

Caster Tyres (in)

13 x 5" – 6

Ground Speed - Fwd (km/h)

0 – 16.1

Ground Speed - Rev (km/h)

0 – 8.1

Overall Length (cm)

206

Dry Weight (kg)

508

Roll-over Protection System

Standard

Instrumentation

Fuel level gauge in tank, Hour meter

Controls

Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit

Balance of Machine Warranty

2+2 Warranty – 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads
